CS Utility Suite

While corporate operations of Civil Solutions did not begin until the early part of 1996, our software programs have been used by engineers in northern California since 1990 (previously distributed directly by the founder).  In 1988, Thomas began to work on "a better drainage program". Along the way several 'splinter' programs were developed and released including NORMHYD™  and CS BACKWATER CALCULATOR™.  These applications were later combined with the CS VERTCURV™ program, a simplified vertical curve solver, to create the CS Utility Suite. Version 3.0 of this software upgraded it's printing and graphing capabilities and expanded the operation to the 32-bit desktop.

   CS Manning Calculator

CS Manning Calculator is the ultimate hydraulic calculator for solutions of the Manning Equation. Solutions available for both Metric and English Units.

  • Easy to use graphical interface.
  • English and metric units solved.
  • Context sensitive help files included.

PIPE: pressure flow and open channel

RECTANGULAR: open channel

TRIANGULAR: open channel

TRAPEZOIDAL: open channel

COMPOSITE OPEN CHANNEL: A composite 'n' value is solved for a channel with up to 100 x-section points and varying 'n' values

TOPPED OPEN CHANNEL: Composite open channels with an enclosed top section

COMPOUND OPEN CHANNEL: The channel sections is solved by sections of channel

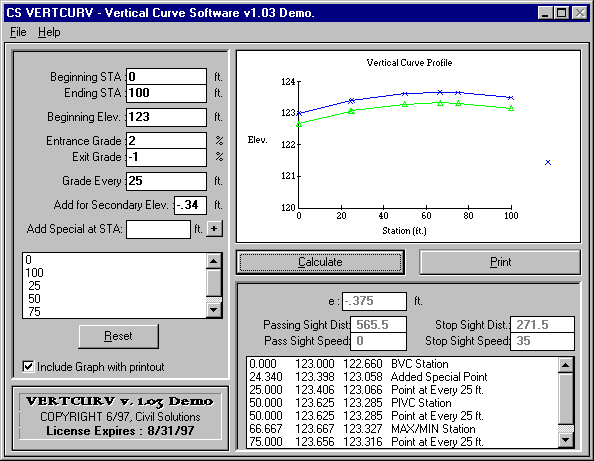

   CS VERTCURVE

CS VERTCURVE is an easy to use vertical curve analysis and design tool. The software was developed based in the vertical design and site distance equations published by the California Department of Transportation (CALTRANS).

  • Easy to use graphical interface
  • Calculates passing site distance and stopping distance
  • Calculates design speed
  • Calculates the elevation of any station within the curve
  • Printouts include graph of profile
  • Save data for later editing
  • Context sensitive help files included





  CS Backwater Calculator

CS Backwater Calculator is a simplified true flow profile analysis tool. The software will solve gradually varied flow profiles through as many as 100 profile station points, for channels of constant shape.

  • Easy to Use Graphical Interface
  • Automatic location of hydraulics jumps and draw downs
  • Results Profiles Include: Normal Depth, Critical Depth, Invert, HGL, EGL, MGL, and increment calculation description
  • Full printing support with viewer
  • Context sensitive Help File included

PIPE: pressure flow and open channel

RECTANGULAR: open channel

TRIANGULAR: open channel

TRAPEZOIDAL: open channel

COMPOSITE OPEN CHANNEL: A composite 'n' value is solved for a channel with up to 100 x-section points and varying 'n' values

TOPPED OPEN CHANNEL: Composite open channels with an enclosed top section

COMPOUND OPEN CHANNEL: The channel sections is solved by sections of channel

Download

CSUS Manual
